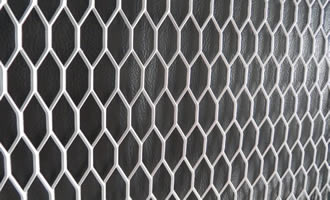

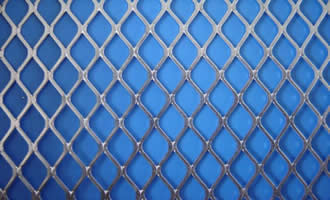

Expanded Metal Mesh
Expanded Metal is a unique material with a fascinating production process, which
can turn any ductile solid metal into thousands of varieties of mesh.
The expanding process of stretching and slitting gives the well known traditional diamond shaped pattern as well as a large range of decorative shaped meshes. This can vary in diamond size from minute gauze to massive walkway. Meshes can be as thin as a foil or as weighty as heavy duty walkway.
Expanded Metal mesh has a diverse number of properties, which makes it versatile and appealing for many uses and applications throughout industries worldwide.
• Screening effect - light and vision can be controlled
• A reinforcing agent - in concrete, plaster and a range of composites
• Heat conduction and diffusion - for grills and high temperature processing

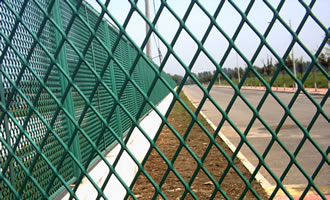

• Security and safety - for fencing, cages and enclosures
• Exclusion and retention - for ventilated storage of goods or partition security
L.W.M. | S.W.M. | Strand Width | Strand Gauge | Approx. Kg/M2 |
6.05 | 3.38 | 0.8 | 0.5 | 2.1 |
10.24 | 5.84 | 0.8 | 0.5 | 1.2 |
10.24 | 5.84 | 1.2 | 0.9 | 3.2 |
14.27 | 5.84 | 1.2 | 0.9 | 3.2 |
19.05 | 7.42 | 1.2 | 0.9 | 3.4 |
5.8 | 3.5 | 0.8 | 0.6 | 2.1 |
19 | 7.4 | 1.7 | 1 | 3.4 |
30.5 | 11.7 | 2.4 | 1.6 | 4.9 |
30.5 | 11.7 | 2.4 | 1.2 | 3.8 |
38 | 16.5 | 2.2 | 1.6 | 3.4 |
50.8 | 22.5 | 2.5 | 2.5 | 4.4 |
50.8 | 22.5 | 3 | 1.6 | 3.4 |
50.8 | 22.5 | 3.9 | 3 | 8.1 |
50.8 | 22.5 | 3.1 | 3 | 6.5 |
76.2 | 33.9 | 3.5 | 3 | 4.9 |
85.7 | 40.6 | 3.2 | 3 | 3.7 |
101.6 | 50.8 | 5 | 3 | 4.7 |
101.6 | 50.8 | 3.4 | 3 | 3.1 |
114.3 | 39.3 | 4.6 | 3 | 5.4 |
200 | 75 | 6.3 | 3 | 3.6 |
